Aqua

dowload pdf aqua

foto aqua

ambienti aqua

Design R&D Litek

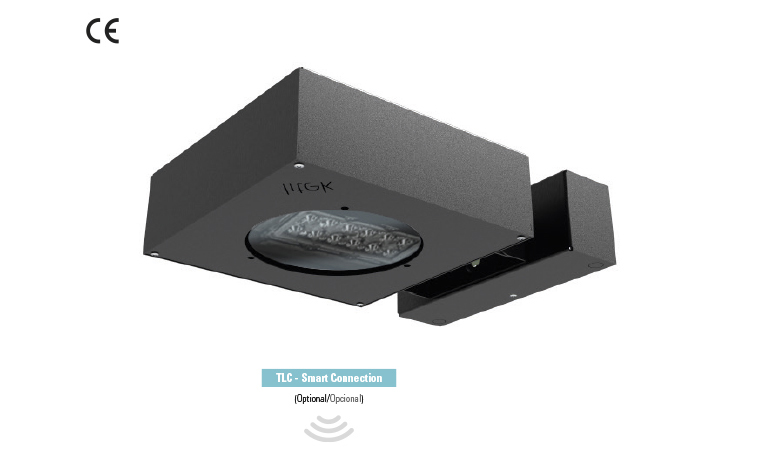

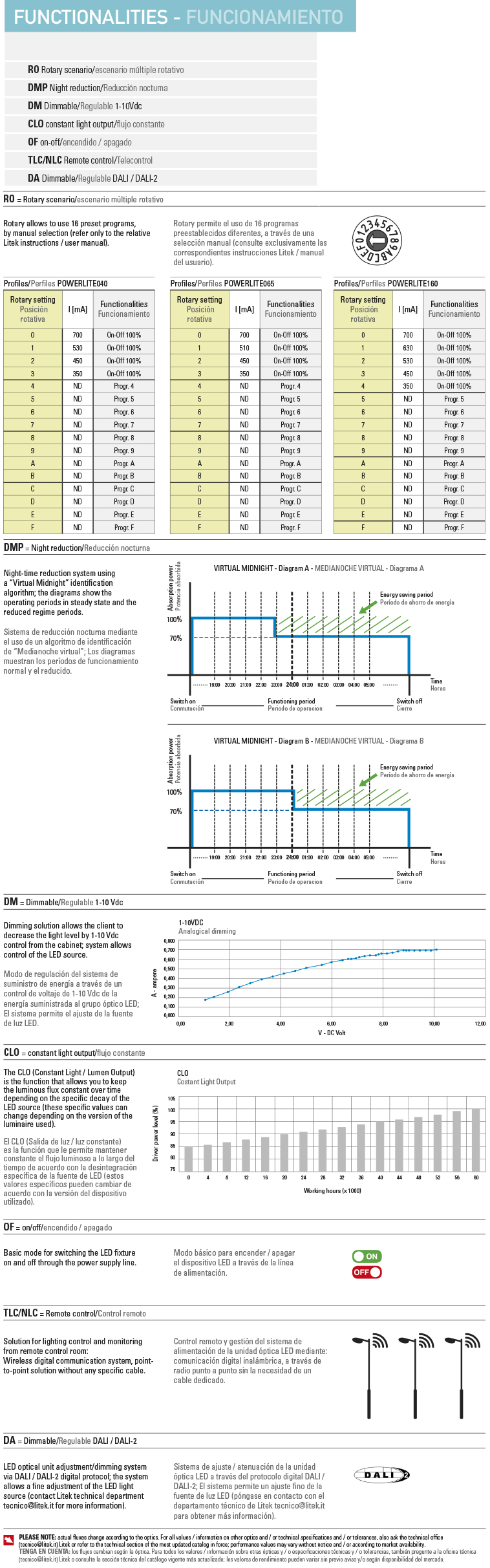

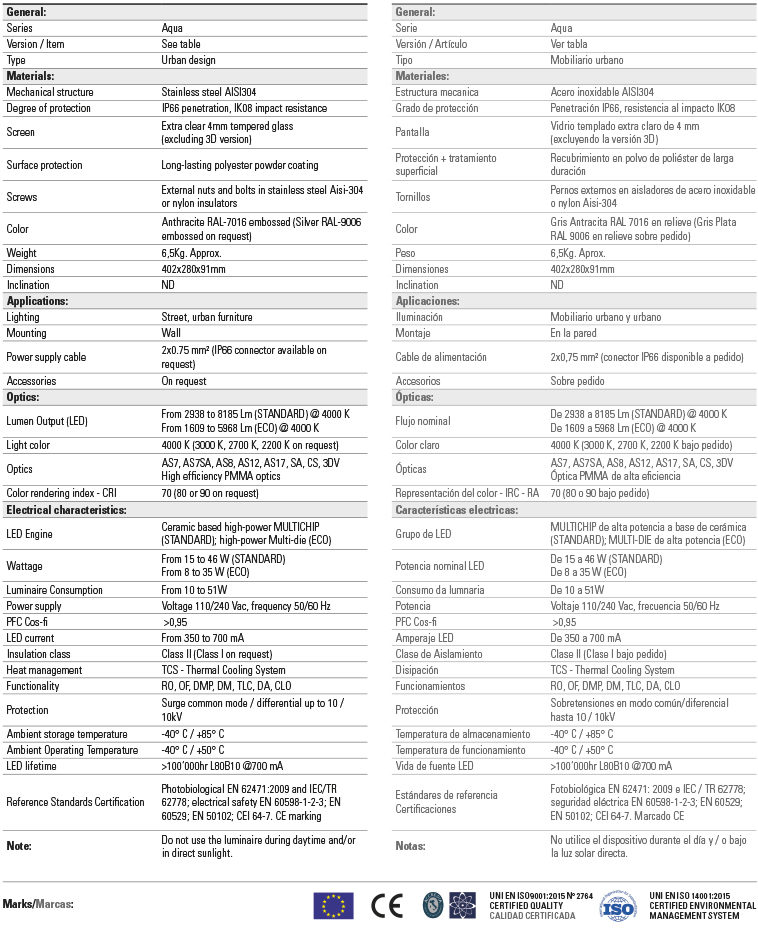

LED street and street furniture lighting fixture of the latest generation (Litek R&D design), upper structure made of AISI304 stainless steel and lower structure made of aluminum, long-lasting polyester powder coating for outdoor use in “Anthracite” RAL 7016 embossed color. Specifically designed for LED technology, with optical unit sealed with extra-clear 4 mm tempered glass protective screen (excluding 3D vers.), compact and high-performance, standard light tones neutral (4000 K), warm (3000 K), very warm (2700 K) or very warm (2200 K); street, roto-symmetric and diffusing optics with totally cut-off emission (excluding 3D vers.). New ceramic-based MULTICHIP LEDs for direct re-melting, LEDs electrically insulated by thermal dissipation system, Vdc constant current LED driver system, different types of operation/ignition (RO, OF, DMP, DM, TLC, DA, CLO); LITEK redundant TCS (Thermal Cooling System) heat dissipation system with automatic safety temperature control, 110/240Volt 50/60 Hz power supply and cos-fi ≥0.9, insulation class I or II, IP66 min, impact protection IK08, stainless steel hardware. Overall dimensions including wall base 402x280x91 mm and weight 6.5 kg. CE marking. Made in Italy fixture and driver.

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
