Design R&D Litek

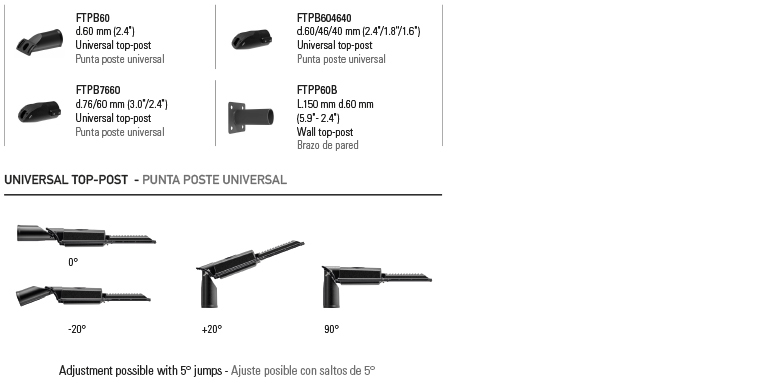

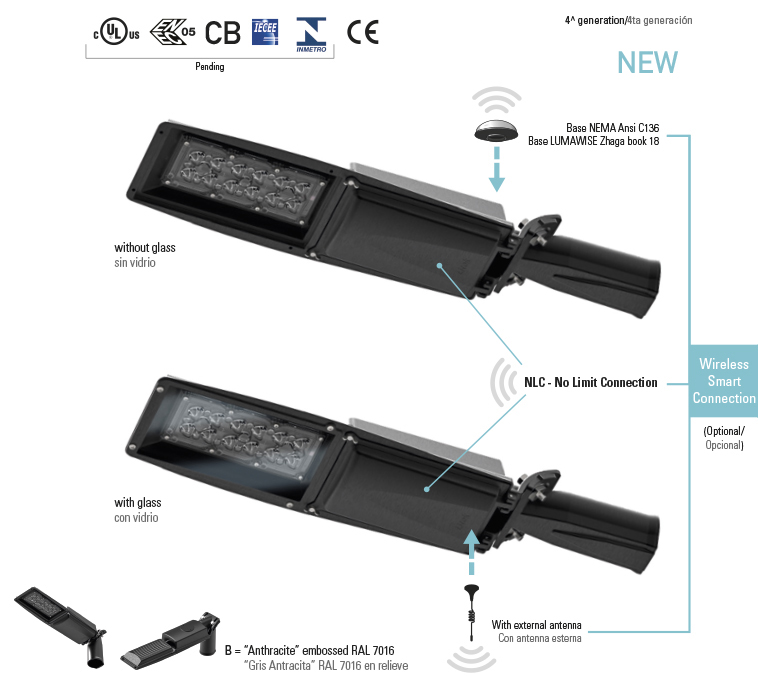

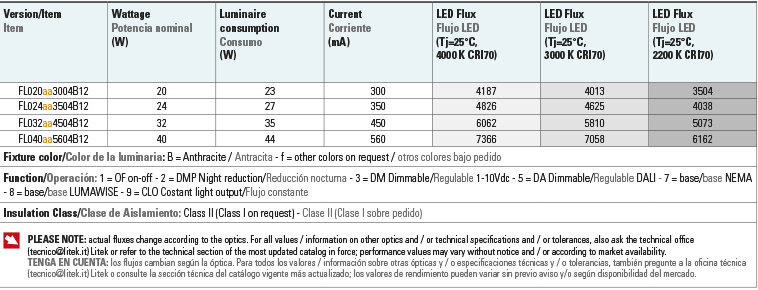

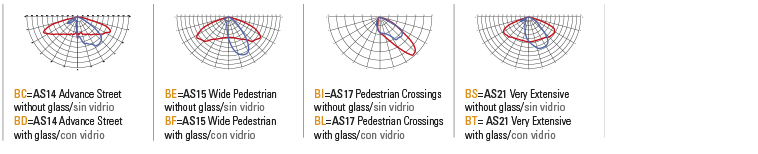

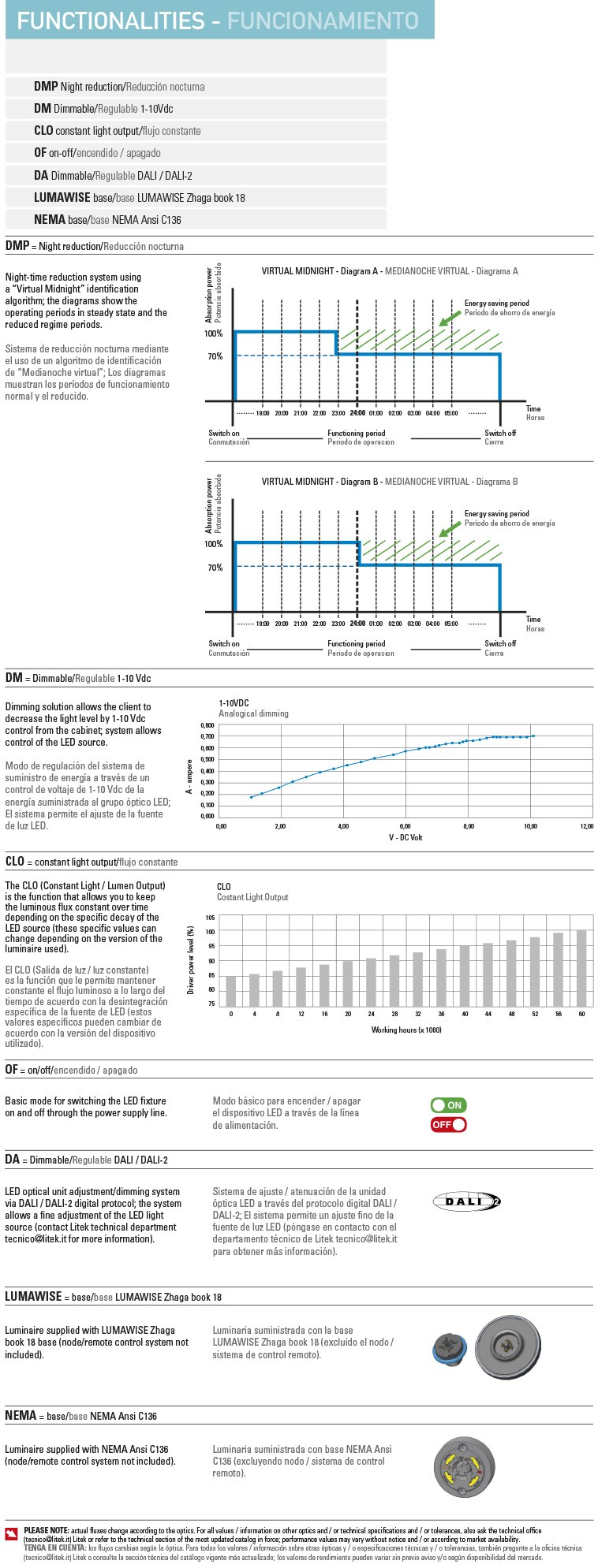

High-efficiency LED street light fixture with body, adjustable pole-head and technical compartment cover made of die-cast aluminum (Litek R&D design) that can be opened without tools, self-cleaning and minimum wind exposure design specifically designed with high heat exchange for LED technology, long-lasting protective treatment by exterior polyester powder coating in “Anthracite” RAL 7016 embossed color (“Silver” RAL 9006 embossed, or other color, upon request). One-piece sealed optic assembly with PC/PMMA road optics (optional on request, extra clear 4mm tempered safety glass protective screen), variable light distribution, light shade neutral 4000 K or warm 3000 K or very warm 2200 K, light emission certified totally cut-off in accordance with LL.RR. against light pollution. Light assemblies composed of high-power MULTIDIE street LEDs, with direct recast on 15/10 pure aluminum circuits; constant current Vdc LED driving (300 to 450 mA). Various types of features/management (OF, DMP, DM, DA, NEMA, LUMAWISE, CLO); LITEK heat dissipation system TCS (Thermal Cooling System) with very high heat exchange. Power supply 110/240Volt 50/60Hz, rephased to cos-fi ≥0.95, class II insulation (class I on request), electronic power supply with microprocessor control with very high efficiency (Made in Italy) and with overvoltage protection up to 10kV both common mode and differential mode, rated power up to 40W. Luminaire with IP66 protection rating of both technical compartment and optical compartment, impact protection rating up to IK09. Stainless steel external hardware. Socket pole attachment suitable for Ø 60 mm vertical and/or horizontal tangs (other sizes on request) and adjustable in 5° steps, dimensions 630x140x100 mm and weight 2.5 kg. Various accessories available, CE marking. Made in Italy fixture and driver.
