Pardal

dowload pdf pardal

foto pardal

ambienti pardal

Design R&D Litek

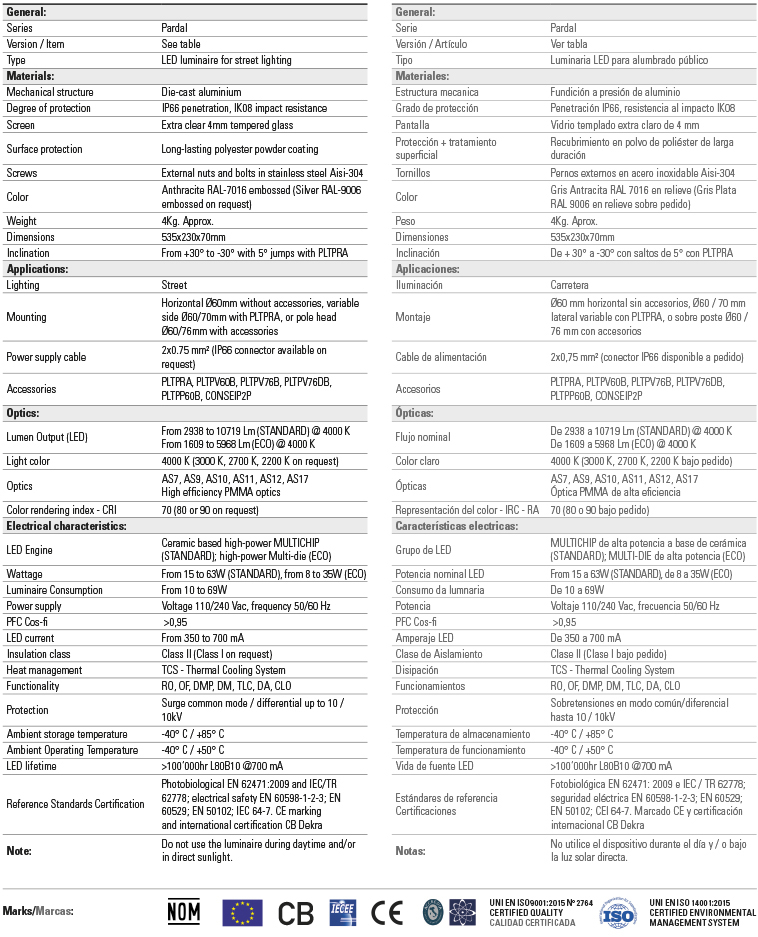

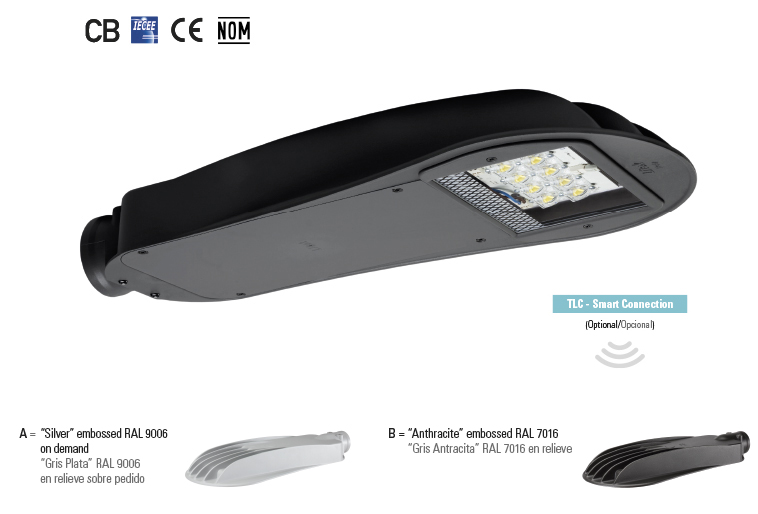

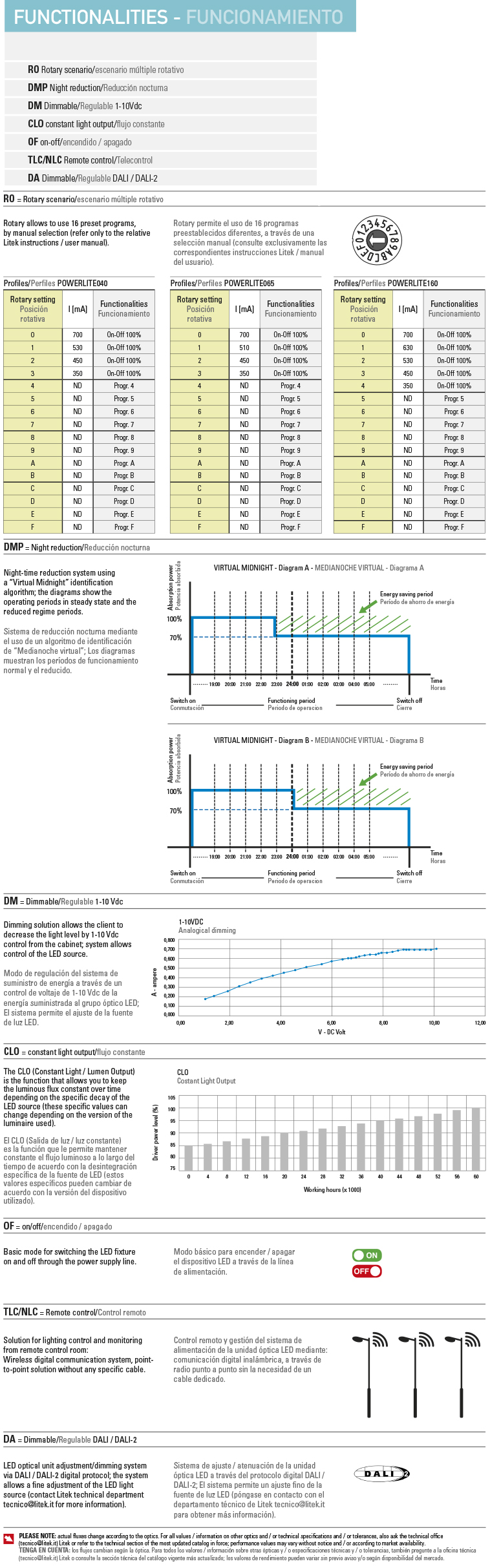

LED street light fixture made of die-cast aluminum (Litek R&D design), self-cleaning and minimum wind exposure design specifically designed for LED technology, IP66 sealed optical assembly with extra-clear (or frosted on request) 4mm tempered safety glass flat protective screen, long-lasting protective treatment with polyester powder coating on exterior in “Anthracite” RAL 7016 embossed color (“Silver” RAL 9006 embossed, or other color, on request). PMMA street optics with variable light distribution, neutral light shade 4000 K (available on request with light: warm 3000 K, very warm 2700 K, and very warm 2200 K), light emission certified totally cut-off in accordance with LL.RR. regulations against light pollution. Light assemblies composed of MULTICHIP ceramic-based power LEDs in the STANDARD version, and MULTIDIE road high-power in the ECO versions, with direct recast on 15/10 pure aluminum circuits; LEDs electrically insulated by the thermal dissipation system, constant current Vdc LED driving system (350 to 700 mA). Various operation/ignition types (RO, OF, DMP, DM, TLC, DA, CLO); redundant LITEK heat dissipation system TCS (Thermal Cooling System) with automatic safety temperature control. Power supply 110/240Volt 50/60Hz, rephased to cos-fi ≥0.95, class II insulation (class I on request), electronic power supply with very high efficiency microprocessor control totally resined (Made in Italy) with overvoltage protection up to 10kV both common mode and differential mode, max rated power 63W. Luminaire with IP66 degree of protection even in the absence of loaded PC accessory compartment cover, quick power connection joint, technical compartment/wires separated from optical unit. Impact protection degree IK08, stainless steel external hardware, Ø60mm horizontal pole mount, dimensions 535x230x70 mm and weight 4 Kg. Various accessories available, Dekra certifications: international CB scheme and CE marking. Made in Italy fixture and driver.

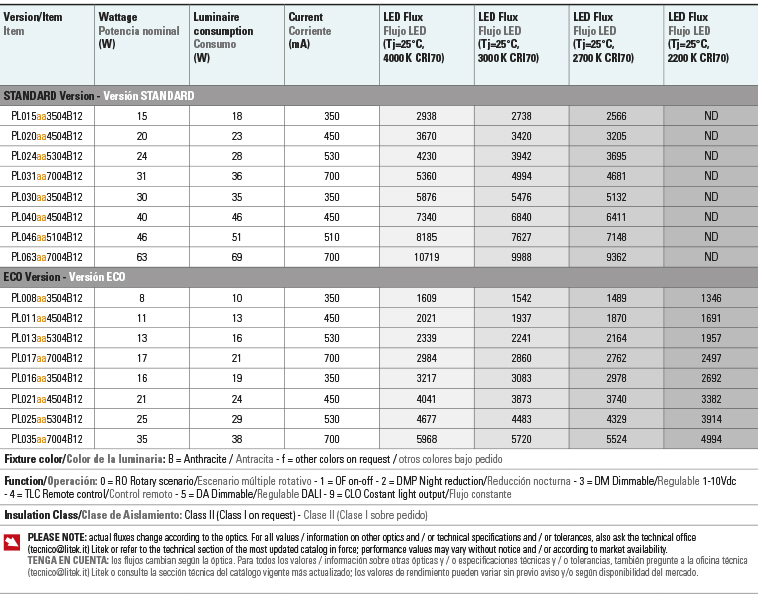

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
