Modulo Acorn

dowload pdf modulo acorn

foto modulo acorn

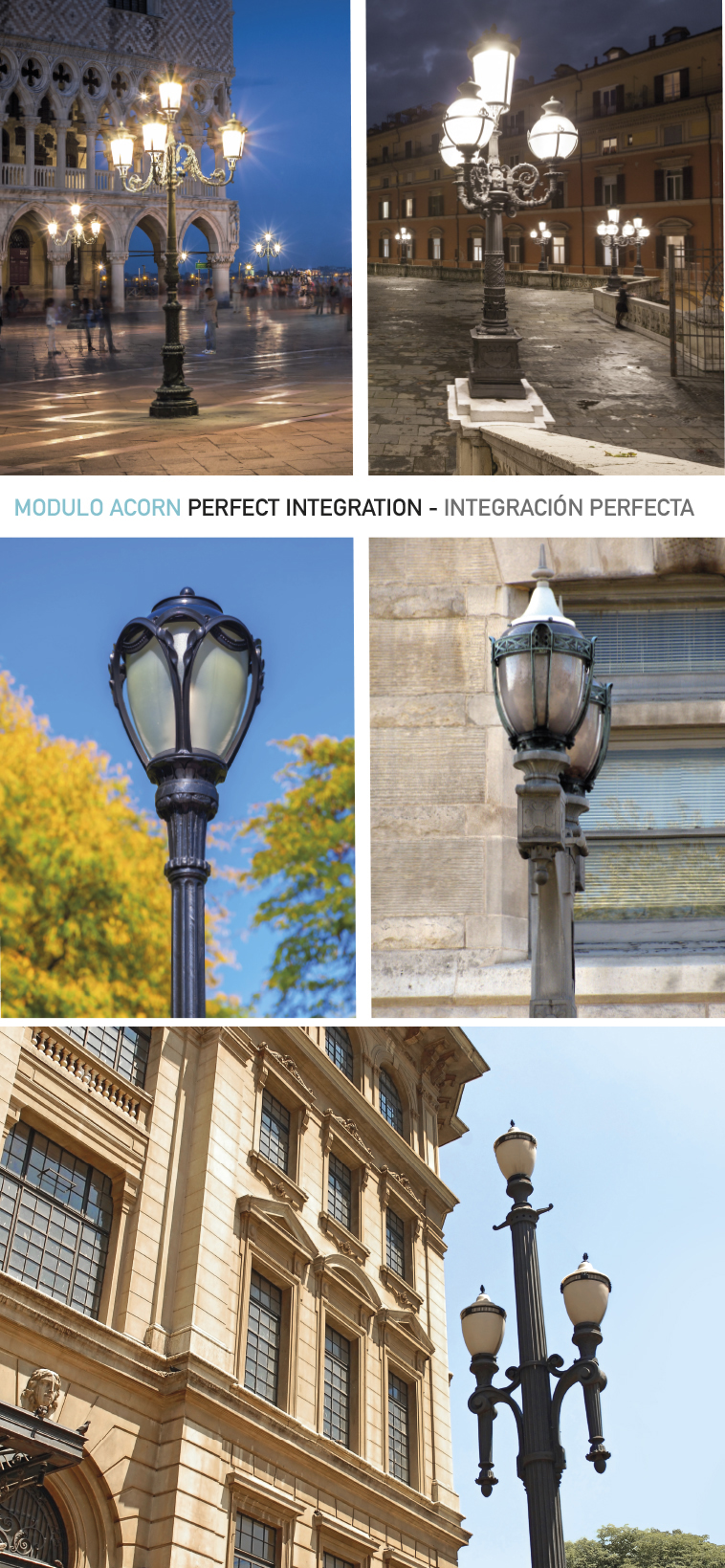

ambienti modulo acorn

Design R&D Litek

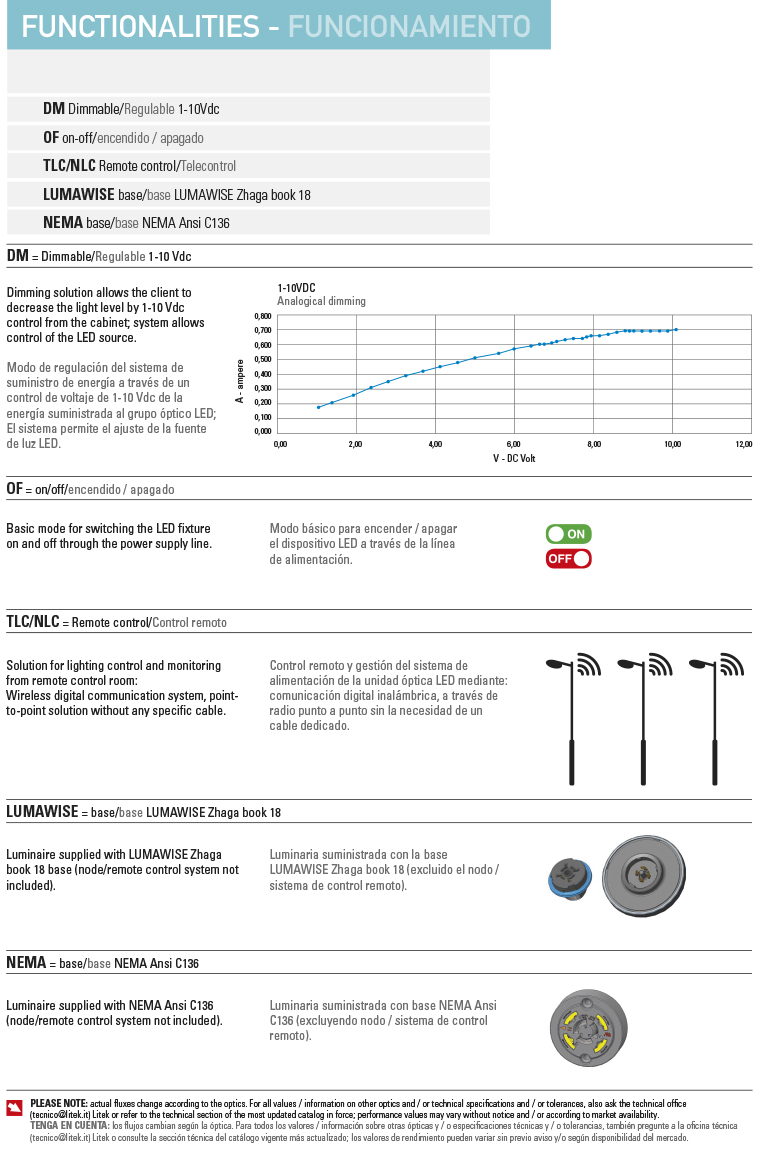

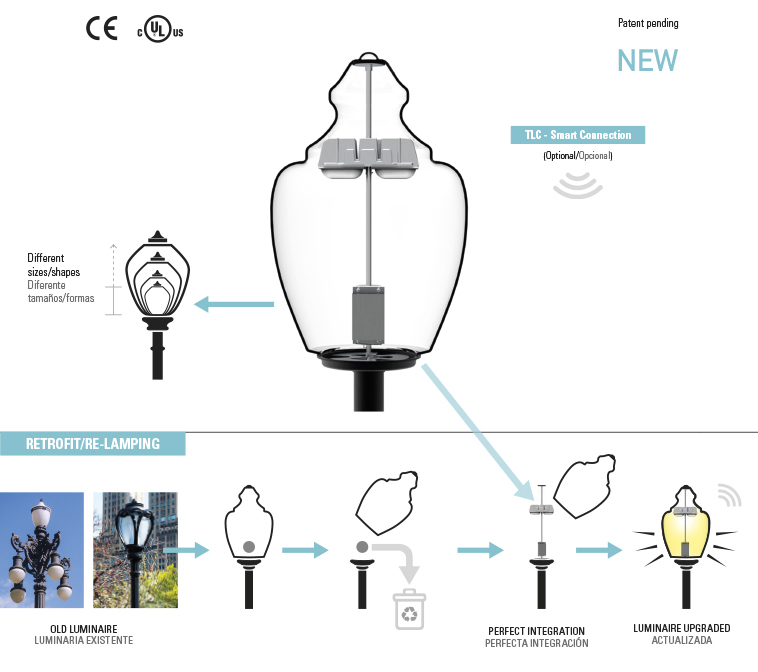

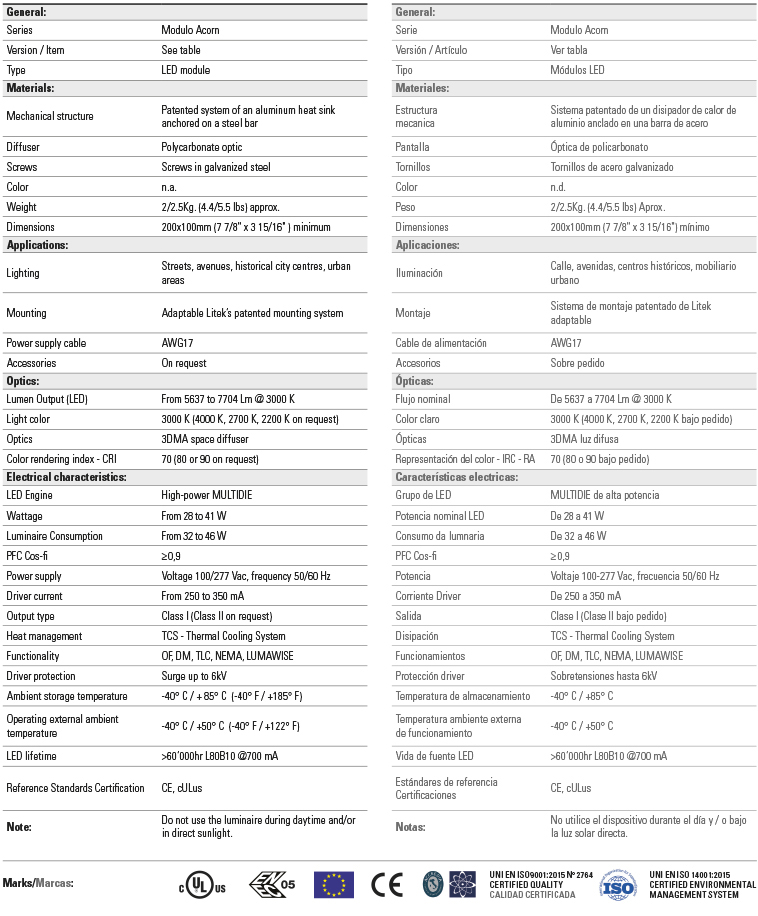

Stand-alone LED module (Litek R&D design) both electrically and mechanically, with very high performance, for upgrading existing fixtures/lamps of various shapes. Made of aluminum and steel, with PC protective screen. Neutral light color 4000 K (available on request: warm 3000 K, warmer 2700 K and very warm 2200 K), CRI 70 (80 and 90 on request). Light engine consisting of a high-power LED with direct soldering on 15/10 pure aluminum circuits. Various types of features (OF, DM, TLC, NEMA, LUMAWISE); high-level heat dissipation system Litek TCS (Thermal Cooling System). Power supply 100/277Volts 50/60Hz, cos-fi corrected power factor ≥0.9, class I (class II on request), very high efficiency electronic driver. Driver having microprocessor with overvoltage protection up to 6kV. Weight 2/2.5 kg. CE marking and cULus certification, patent pending.

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
